High-spec 5+3 Five axis CNC Bridge Cutting Machine

Payment Terms : T/T, L/C

Max Cutting Length : 3200*2000mm

Voltage : 220v/380v

Model Number : ZS3220-5+3

Dimension(L*W*H) : 5500x3200x3700mm

Core Components : DELTA servo motor /High power motor /SHIMPO RV reducer /Taiwan HIWIN guide rail

MOQ : 1

Delivery Time : 30DAYS

Power(W) : 22kwPM+7.5kw+750w

Use : Granite/Marble/Quartz/Porcelain, etc

Packaging Details : OTHERS/5300*2250*2400mm

Price : $28,000 / set

Type : Stone CNC Bridge Cutting Machine

Supply Ability : 1000 SETS ONE YEAR

Color : Red/Yellow/Blue/White Customizable

Warranty : ONE Year

Certification : CE

Cutting thickness (max) : 150mm

Brand Name : ZSMART

Weight : 5000 kg

Place of Origin : SHANDONG,CHINA

Key Selling Points : Easy to Operate/High Safety Level/Remote Monitoring /Long Service Life/Energy saving/High-accuracy /Low Noise Level/High Rigidity/Automatic /Eco-Friendly/Multifunctional/Remote Control /High Productivity/Flexible Manufacturing /Famous brand low voltage com

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Contact Now

Product Description

Laiyang Zeus Machinery Co., Ltd. specializes in stone CNC processing equipment, established in 2006 with a dedicated R&D and production team. The company offers advanced 5+1 axis CNC motor stone cutting bridge machines for granite processing, featuring high-speed precision hosts and 0-85 degree flipping capabilities. Products are exported to Europe, the US, and Southeast Asia, supported by long service life and reliable after-sales service.

beam Cast Iron Beam Weighs 1.2 tons
Machine body Galvanize
Processing speed 0-10m/min
Total power rating 30kw
dust cover 6 set
Main motor power PINYI permanent magnet 22KW
voltage 220V/380V/50Hz
Control system ZEUS CNC system
Blade diameter 350-450mm
Z-axis stroke 300mm
HD Camera Contain HIKVISION
Water chiller Contain
Spindle motor power ZEUS 7.5KW
Vacuum suction cup Contain Two
A-axis motor power 750w
chamfer 0-90°
Machine head 360°free rotation
worktable tilt 0-85°
reducer SHIMPO
Servo motor DELTA 1.5kw*6
servo driver DELTA *6
Electric device Schneider
Guide rail Taiwan HIWIN
Cutting thickness 100mm
Worktable material and dimension Rubber 3200*2000mm
Overall dimension 5300x3000x3500mm
Weight 5000kg
water consumption 1m3/h
Grantee 1 year
Company Profile
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine

Laiyang Zeus machinery co.., LTD. was established in 2006, is a dedicated to stone numerical control processing equipment research, development and production of professional enterprises. The company has a professional research and development, design, production and after-sales service team, insist in the "quality and service for the first" purpose, for the company's products to provide reliable technical support and after-sales service guarantee, from the product appearance, performance, precision to achieve a perfect combination. Through the unremitting efforts of Zeus team, overcome difficulties, products not only sell well in domestic market. but also exported to Europe, the United States, Southeast Asia and other countries. One of the multi-functional cutting and grinding machine, hole machine, 45 degrees back cutting machine by the majority of customers like.

Why Choose Us
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
  • Strong technological innovation capability, independent research and development of intelligent control systems, continuous optimization and upgrading of products
  • Reliable product quality and high cost-effectiveness
  • The machining accuracy is high, and the positioning accuracy can reach 0.01mm
  • Products can be customized according to the special needs of different customers
  • Have a professional after-sales team, respond promptly and continuously improve, and solve customers' worries
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine

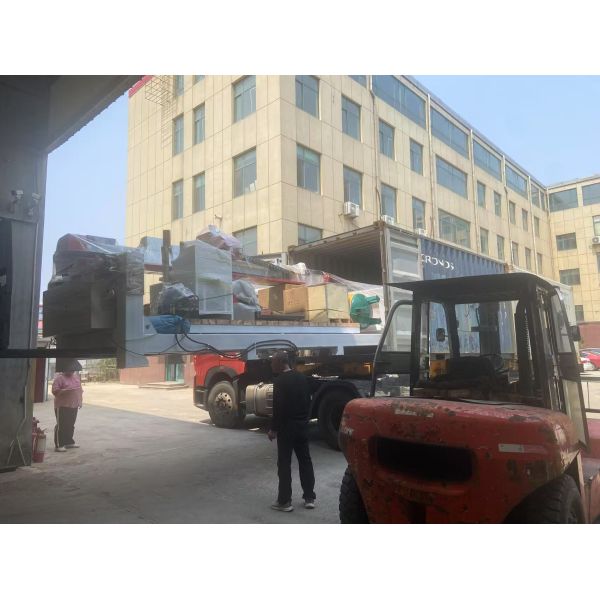

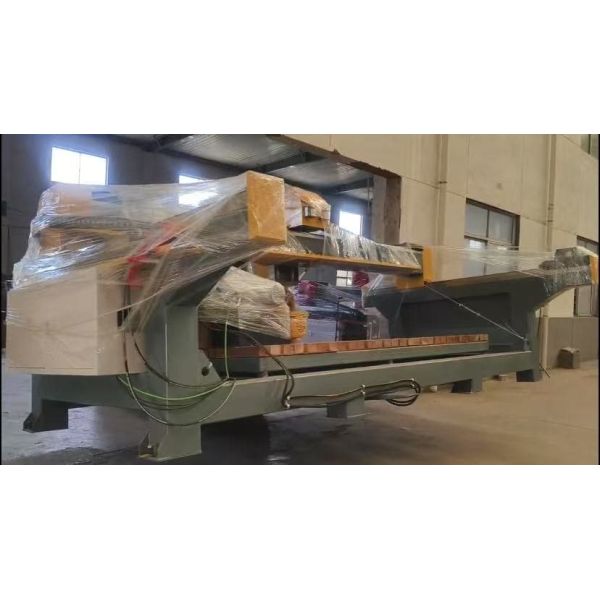

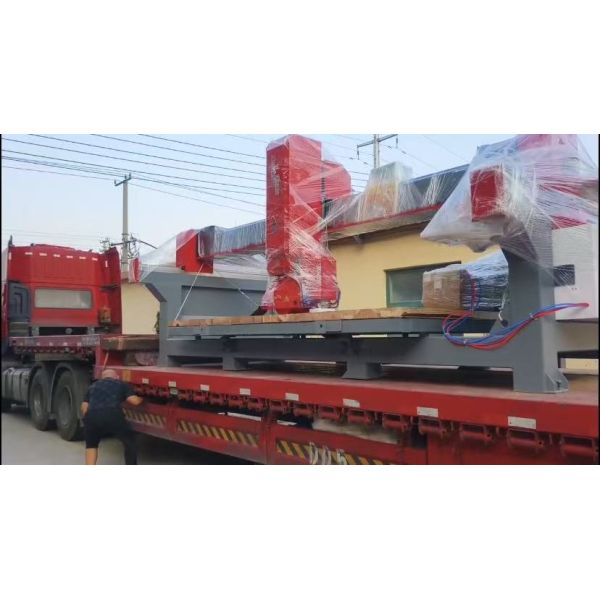

Packing & Delivery
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
Exhibition
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
Customer Photos
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
High-spec 5+3 Five axis CNC Bridge Cutting Machine
FAQ

A) Can you shape our brand on your product?yes. If you can meet our minimum order quantity, we can print your logo on the product and packaging.

B) Can you produce products in our colors?Yes, if you can meet our minimum order quantity, the color of the product can be customized.
C) How to ensure the quality of the product?1) Before producing the product, carefully confirm, strictly inspect during the production process, and install and debug after production is completed.
2) Conduct strict sampling inspections on the products before shipment to ensure that the packaging is intact and undamaged.
D) Can you customize anything for your products?Yes, our product comes in standard specifications, but we can customize products according to customer needs such as workspace,motor power, product functionality, color, logo, etc
